Technical Overview
Sound power at max. speed (2010/30/EC)
60 dB
Maximum output air extraction
416 m³/h
Boost position air extraction
674 m³/h
Colour
Stainless steel
Material body
Stainless steel
Built-in / Free-standing
Built-in
Width
60 cm
Awards
Specifications
Width
60 cm
Colour
Stainless steel
Type
Wall-mounted
Air circulation
Convertible
Total power of the motors
140 W
Controls
touch control
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
416 m³/h
Boost position air extraction
674 m³/h
Sound power at max. speed (2010/30/EC)
60 dB
Sound power boost (2010/30/EC)
71 dB
Maximum output recirculating air
330 m³/h
Boost position output recirculating
409 m³/h
Sound power at max. speed (recirculation)
67 dB
Sound power boost (recirculation)
71 dB

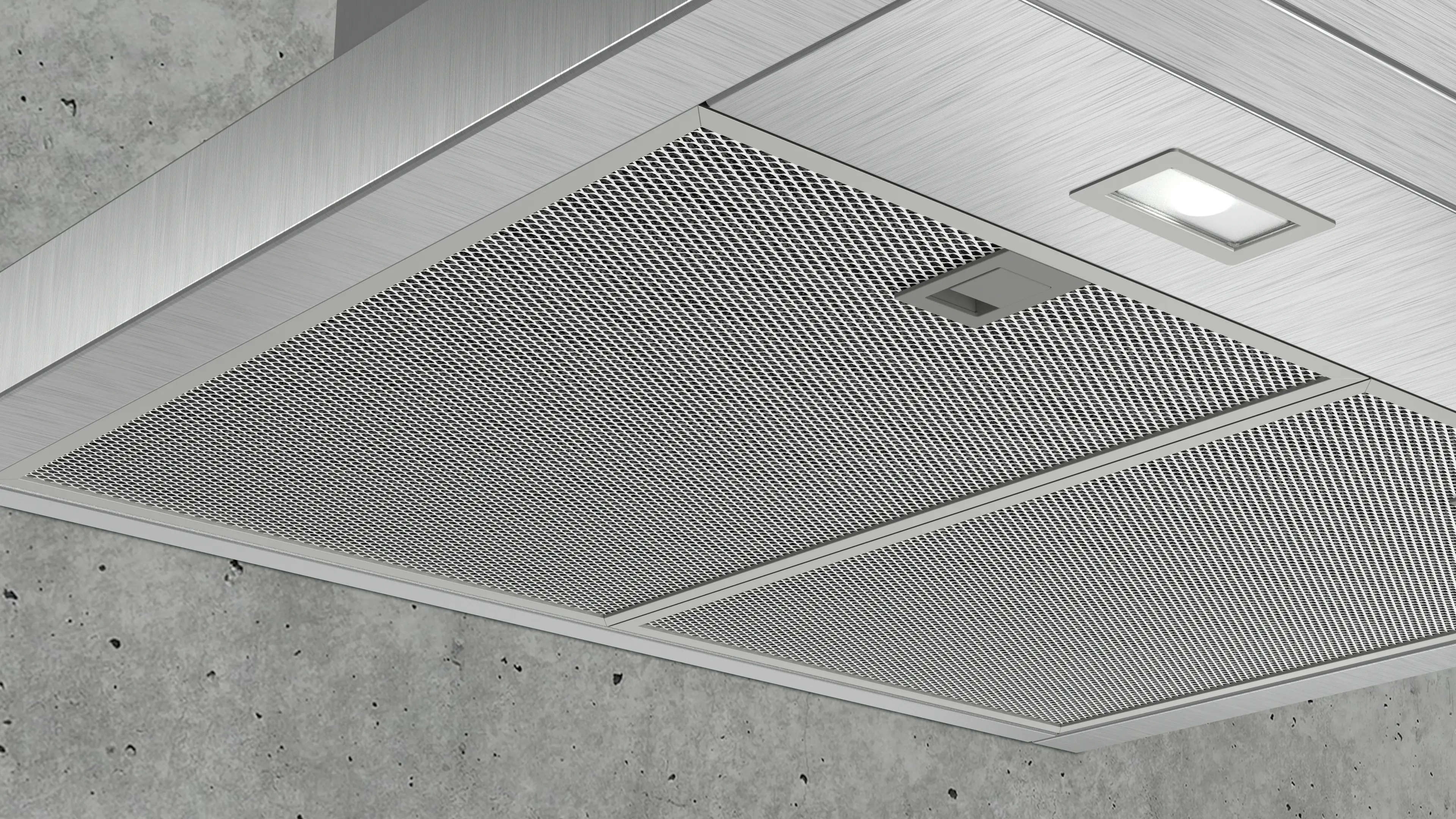

Grease filter material
Washable aluminium
Total annual energy consumption
36.1 kWh/annum

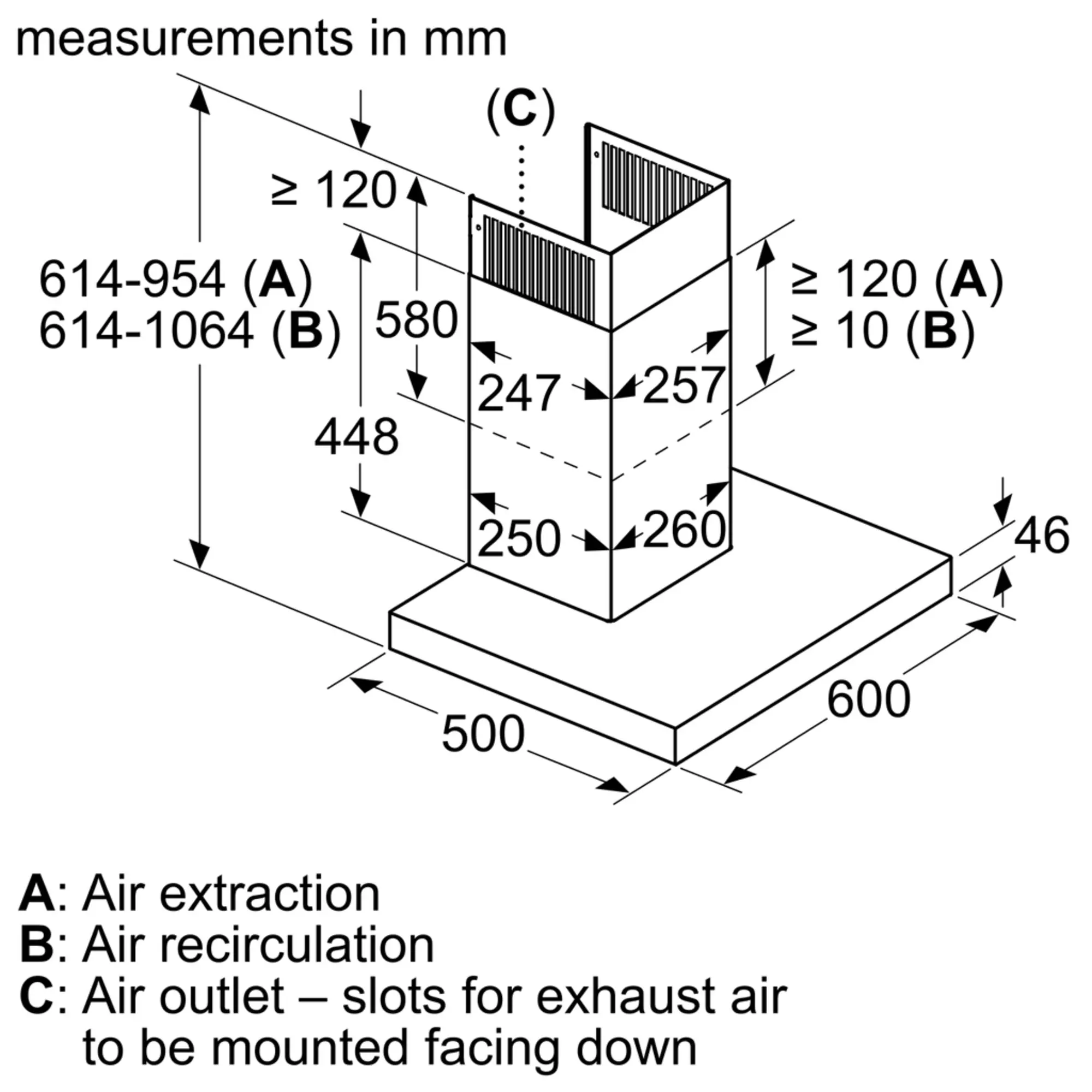

Height of the appliance
46 mm
Width of the appliance
598 mm
Depth
500 mm
Height of the chimney
582-908/568-1018 mm

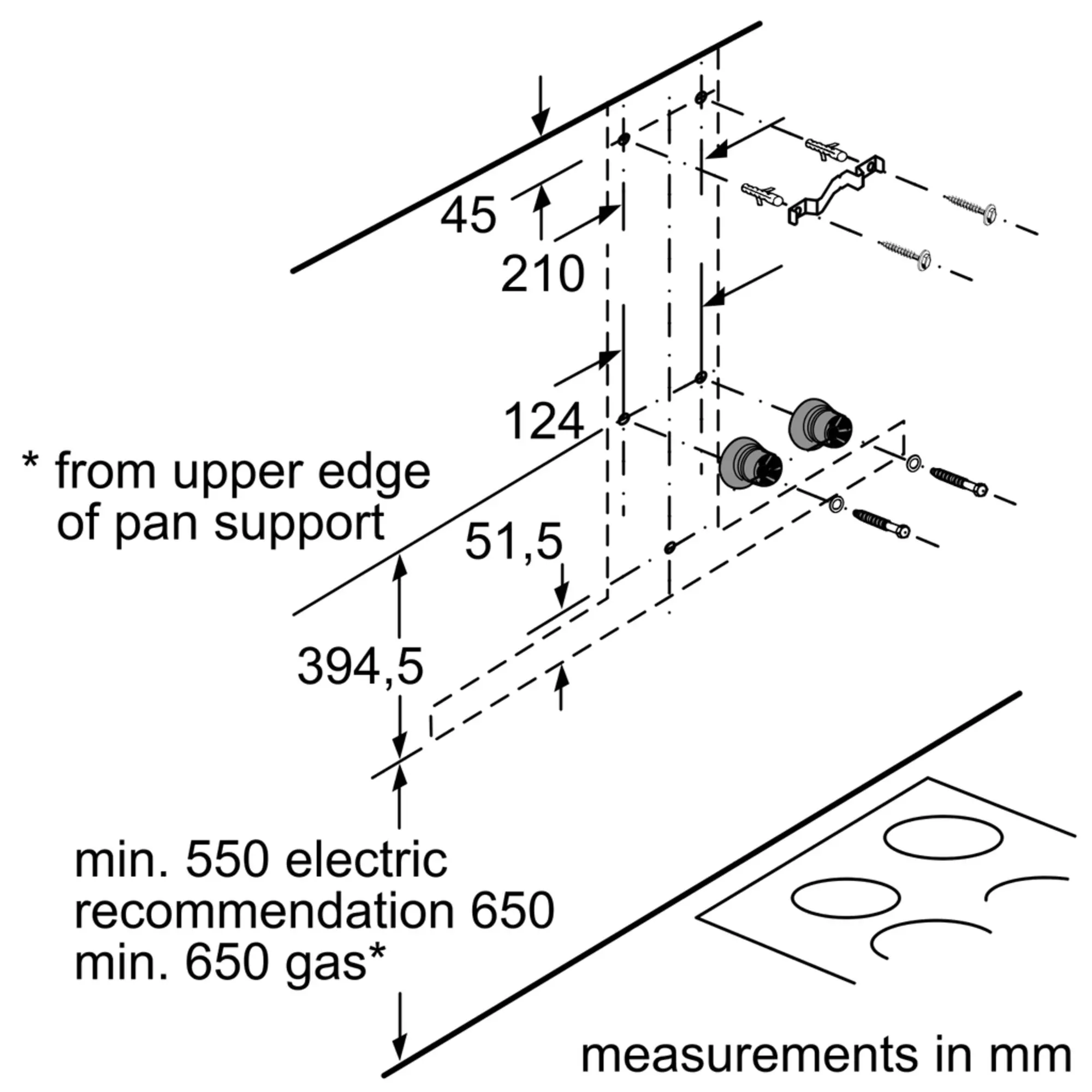

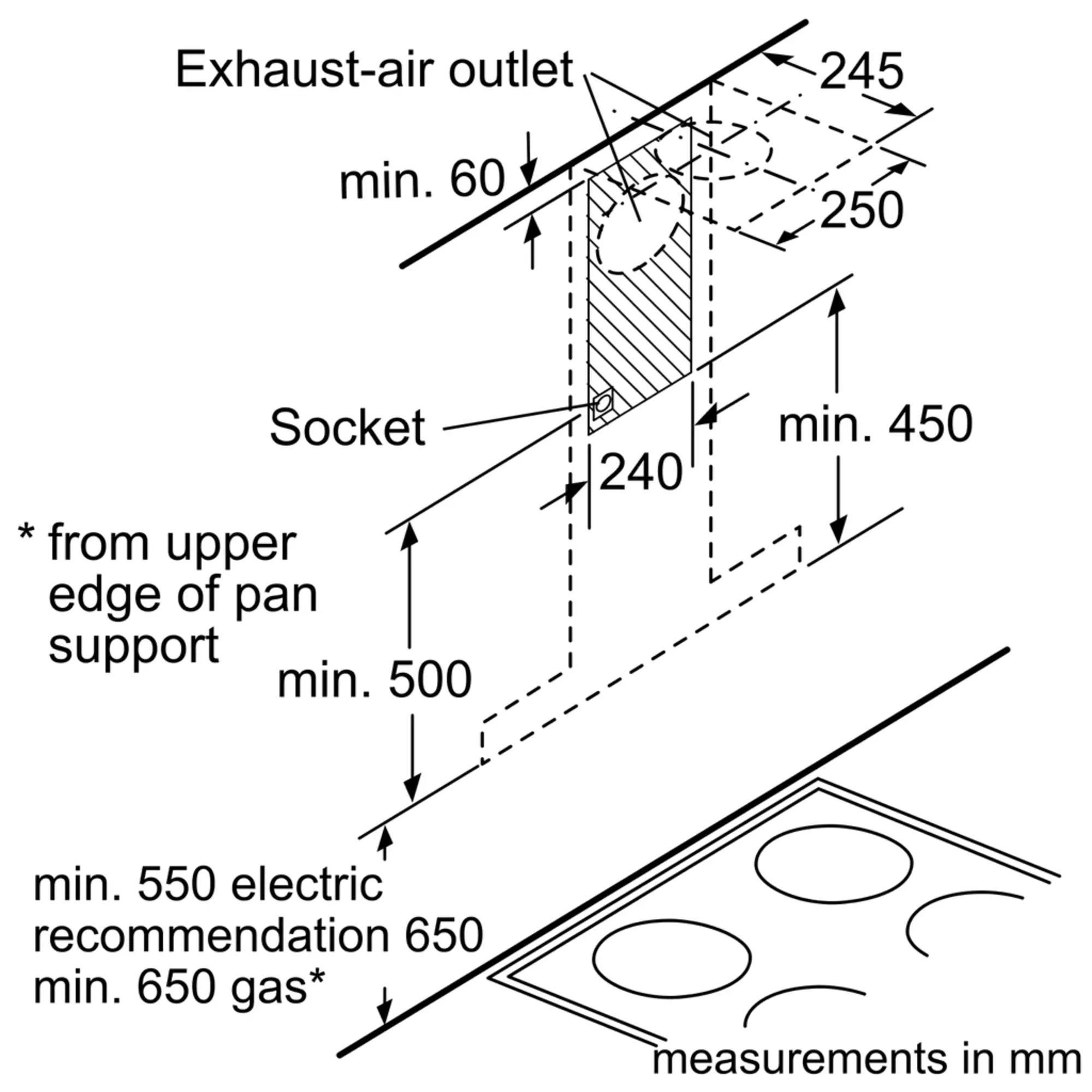

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
130 cm
Net weight
17.3 kg
1 / 0
climateControl sensor
No
iQdrive
Yes
Extremely silent appliances
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Total power of the lamps
GENERAL.N_A W
Color temperature
Neutral (3.500 K)
emotionLight Pro
No
Home Connect
No
Hob-based hood control
No
